ASTM A615 Reinforcement Bar Grade 75
ASTM A615 is a deformed steel standard categorized under American standards. These are generally available in diameter between 9.5 mm and 43 mm, and length between 6 m and 12 m. Generally, the steel bars that fall under this standard are under deformed or plain carbon steel.
WhatsApp:+86 18906192815
Email:andrew@huiyingsteel.com
Contact Us
Products center

Product Description

ASTM A615 Reinforcement Bar Grade 75 Description

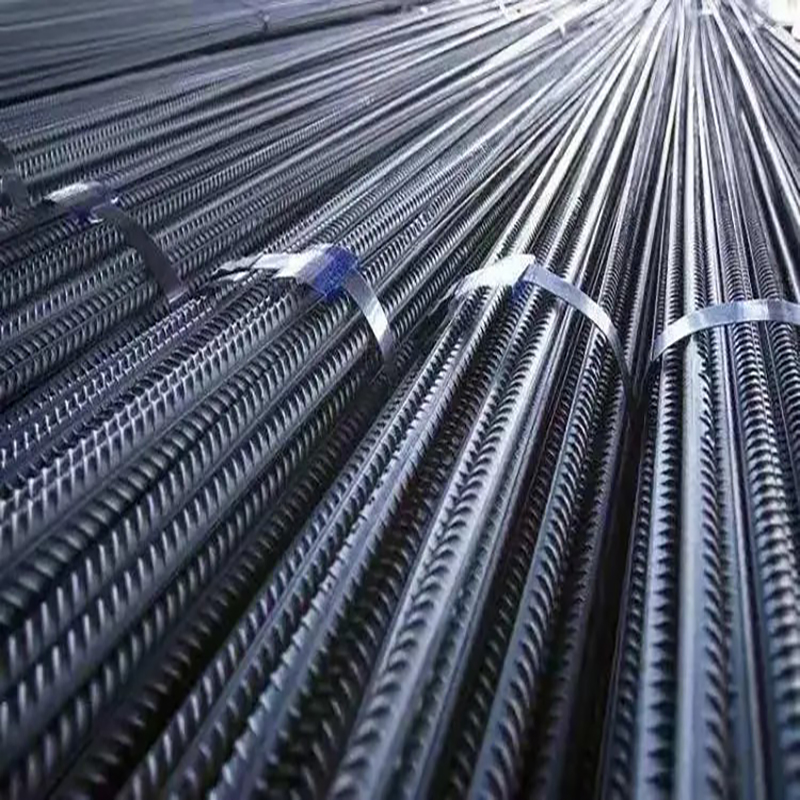

ASTM A615 steel bar increases the tensile strength of concrete and can be used for both primary and secondary reinforcement. It helps absorb stress and weight and facilitates the even distribution of the tension caused by the expansion and contraction of concrete. ASTM A615 steel bar has a rough, blue-grey finish with raised ribs throughout the bar. ASTM A615 grade 75 steel bar offers enhanced yield strength of at least 75 thousand pounds per square inch. It also features a continuous line system, with one line running along the length of the bar which is offset a minimum of five spaces from the center. These characteristics make grade 75 steel bar particularly well-suited for heavy-duty concrete reinforcement applications.



ASTM A615 American Rebar Specifications

DIMENSION
( mm. )

LENGTH
( m. )

NUMBERS OF REBARS
(QUANTITY)

ASTM A 615 / M Grade 75

Kg / m.

THEORETICAL WEIGHT OF BUNDLE ( Kg. )

8

12

420

0.395

1990.800

10

12

270

0.617

1999.080

12

12

184

0.888

1960.704

14

12

136

1.208

1971.456

16

12

104

1.578

1969.344

18

12

82

2.000

1968.000

20

12

66

2.466

1953.072

22

12

54

2.984

1933.632

4

12

47

3.550

2002.200

25

12

42

3.853

1941.912

26

12

40

4.168

2000.640

28

12

33

4.834

1914.264

30

12

30

5.550

1998.000

32

12

26

6.313

1969.656

36

12

21

7.990

2013.480

40

12

17

9.865

2012.460



Scope of Application

Widely used in houses, bridges, roads, especially railways and other civil engineering.
