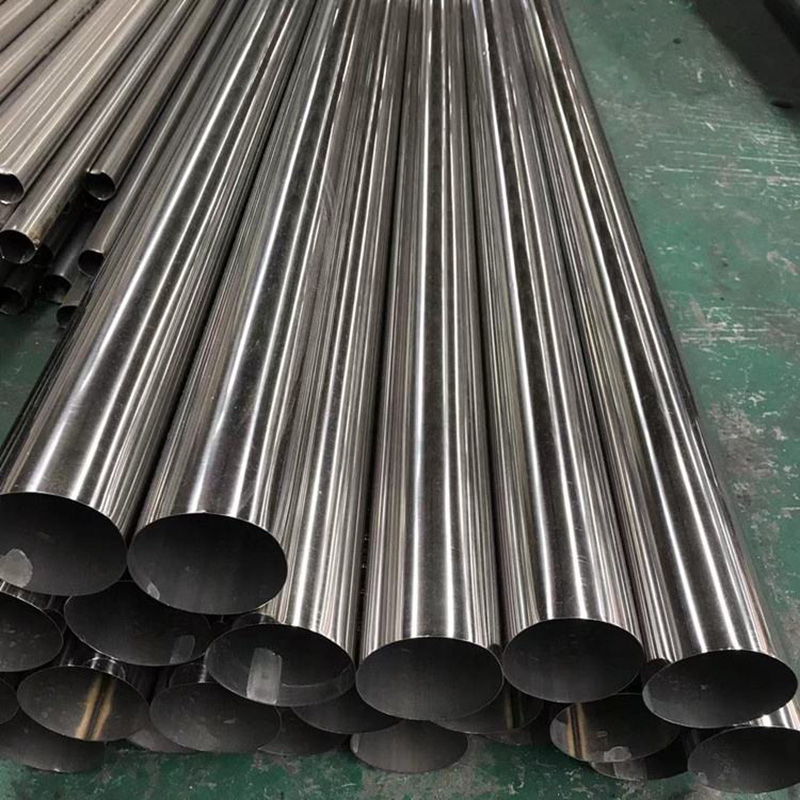

316 Stainless Steel Pipe
316 stainless steel contains 2-3% molybdenum, aside from iron, chromium and nickel. The addition of molybdenum significantly improves the performance of 316 stainless steel in certain corrosive environments, especially those containing chlorides. 316 stainless steel is more commonly used when higher corrosion resistance is needed.
WhatsApp:+86 18906192815
Email:andrew@huiyingsteel.com
Contact Us
Products center

Product Description

316 Stainless Steel Pipe Description

316 stainless steel pipe is recognized in the stainless industry for a number of key reasons. Grade 316 is the standard molybdenum-bearing austenitic grade, which is strongly invulnerable to pitting and crevice corrosion in chloride environments. So 316 stainless steel is commonly adopted in situations where higher corrosion resistance is required. For example, 316 stainless steel is often used to manufacture ship parts, subsea pipelines, offshore platforms and other facilities. In the chemical industry, it is also commonly used to produce equipment such as storage tanks, reactors and pipelines. In addition, 316 stainless steel is also widely used to manufacture medical devices and implants due to its excellent biocompatibility and corrosion resistance.


Product Parameters

Product Name

316 Stainless Steel Pipe

Type

Steel Pipe

Outer diameter

Round Tube

4mm-200mm

Square Tube

10*10mm-100*100mm

Rectangular Tube

10*20mm-50*100mm

Wall Thickness

0.6mm-6.0mm

Length

1-6 meters, Length can be customized

Standard

ASTM, AISI, JIS, GB, DIN, EN, etc.

Surface

Black, Bright Polished, Rough Turning, Matt Surface Treatment, No. 4. BA, etc.

Scope of Application

Common applications for stainless steel pipes include food processing,

Textile operations, Breweries, Water treatment plants, Oil and gas processing,

Fertilizers and pesticides, Chemical applications, Construction, Pharmaceuticals, Auto parts, etc.

Certificate

ISO, SGS, BV, etc.

Production Technology

Hot Rolling, Cold Rolling

Edge Processing

Edging, Trimming



Chemical Composition

C

Si

Mn

Cr

Ni

S

P

Mo

≤ 0.03

≤ 0.75

≤ 2.0

16.0~18.0

10.0~14.0

≤ 0.03

≤ 0.045

2.0~3.0



Mechanical Properties

Tensile Strength Kb (MPa)

Yield Strength σ0.2 (MPa)

Elongation D5 (%)

Hardness

≥480

≥177

≥ 40

≤ 187HB;≤ 90HRB;≤ 200HV



Physical Performance

Density(g/cm³)

Modulus of Elasticity(Gpa)

Coefficient of Thermal Expansion(10-6/°C)

Coefficient of Thermal Conductivity(W/m*K)

Resistivity(ΜΩ. cm)

7.99

193

16.0

16.2

74

Products center

Product Application

  • 1775551249900060937244790784
  • 1724983128687962864209162240
  • 1724983125687962850678337536
  • 1724983121687962836648390656
  • 1700360854_huge
  • a79728cbbd8040cb9dcee1b7a5e8e557
Products center

Packaging and shipping

  • 1
  • 2
  • 3
  • 4
  • 5
  • 9
Products center

Factory Display

  • a635e6aa8af749b3b20947091f812fdd
  • 011177a38e499b8b50e0993f29e85558
  • 60a465fb6d089d1e3a0c90958431d3c3
  • 未标题-2
  • 摄图网_600975422_钢铁仓库(非企业商用)-(1)
  • vecteezy_modern-industrial-steel-manufacturing-facility-with-advanced_49740735
  • 0b42940c953e9e845fc286c7d6151ed6
  • 25a2288e2c3f5a265b436ee9de2c6480
  • bf4177c383f74c00f80e0bca1aae52a7
  • 工厂车间 (4)
  • Stainless-Steel-Pipe-Manufacturers
  • 4ba06389467ca90624596b987abe434be8635cba188343-TdLEpR 拷贝
  • 645f88ceb28016b71deb44d0eca6ae91346ff4f633046-YV9trp
  • 76e854f676be41a74b86935d2042824d
Products center

FAQ

Q1: What types of steel products does your company primarily manufacture and supply?
A: We are a direct manufacturer specializing in carbon steel, hot-dip galvanized steel, PPGI (pre-painted galvanized iron), and stainless steel (grades 201, 304, and 316) in the form of sheets, coils, pipes, and various structural profiles, along with complementary steel structural components. Our products serve a wide range of industries, including infrastructure, photovoltaics, machinery manufacturing, chemicals, and new energy.



Q2: Do you support customization regarding material grades, thicknesses, and dimensions?
A: Customization is available across our entire product range. For carbon steel, galvanized steel, and stainless steel, we can adjust thickness, width, and cut-to-length dimensions according to GB, ASTM, or EN standards. Various profiles can be cut and bent based on customer drawings, and special steel grades can be produced through customized scheduling.



Q3: What is the difference between galvanized steel and color-coated (PPGI) steel, and how should I choose for my project?
A: Hot-dip galvanized steel features a pure zinc anti-rust layer; it is cost-effective and impact-resistant, making it ideal for mounting brackets, guardrails, and load-bearing factory structures (and it can be painted over). PPGI color-coated steel uses a galvanized base, offering both rust protection and aesthetic appeal with a wide range of colors; it is commonly used for factory roofing, wall cladding, and energy storage equipment casings. We recommend thicker galvanized coatings for projects in rainy coastal areas, color-coated sheets for outdoor projects requiring visual appeal, and weather-resistant fluorocarbon (PVDF) coatings for high-temperature desert environments.



Q4: Does the factory keep stock on hand, and what is the minimum order quantity (MOQ)?
A: We operate our own standardized, zoned warehouse with a capacity of over 10,000 tons, maintaining ample stock of carbon steel, galvanized steel, and stainless steel. The MOQ for standard specifications is 1 ton, though we also accept sample orders as small as a few dozen kilograms. There is no upper limit for large-scale projects, and we support mixed-load shipments combining different steel products in a single container.



Q5: What are the lead times for stock items versus customized products?
A: Standard stock items take 3–7 days for processing, packaging, and container loading. Simple cutting and bending orders take 7–10 days. Orders requiring mold creation or special steel customization take 15–30 days; exact delivery dates are confirmed based on the customer's specific order specifications.
