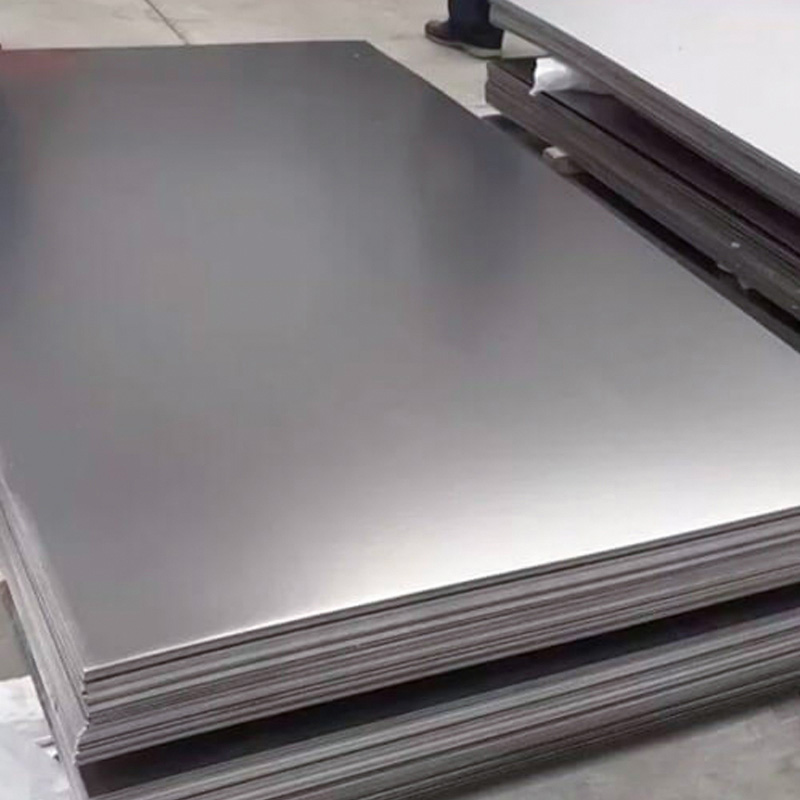

316L Stainless Steel Plate
316L stainless steel has a lower proportion of carbon in its composition. To qualify as 316L stainless steel, the amount of carbon cannot exceed 0.03%. This decreases the risk of carbon precipitation, making it a better option for welding to ensure maximum corrosion resistance.
WhatsApp:+86 18906192815
Email:andrew@huiyingsteel.com
Contact Us
Products center

Product Description

316L Stainless Steel Plate Description

316L stainless steel is a variant of 316 stainless steel with a lower carbon content and is used where welding is required.    The lower carbon content minimizes the precipitation of carbides in the heat-affected zone close to the weld, and the precipitation of carbides may cause intergranular corrosion of stainless steel in certain environments.    Basically, using 316L eliminates the need to anneal weld joints prior to using the completed metal form, saving time and effort.     316L stainless steel is the second most widely used stainless steel after 304, and its corrosion resistance is better than 304.    High temperature resistance is also better, up to 1000 degrees.    316L stainless steel is a kind of universal stainless steel material, rust resistance is stronger than 200 series stainless steel material.    316L stainless steel is widely used in the chemical industry because of its excellent corrosion resistance.


Product Parameters

Product Name

316L Stainless Steel Plate

Type

Plate

Thickness

0.3mm-200mm

Length

2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.

Width

40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.

Standard

ASTM, AISI, JIS, GB, DIN, EN, etc.

Surface

BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.

Scope of Application

Widely used in high temperature and electrical industry, medical equipment construction, chemical, food industry, agriculture and ship parts, food and beverage packaging,

Kitchen supplies, trains, airplanes, conveyor belts, vehicles, bolts, nuts, springs and screens, etc.

Certificate

ISO, SGS, BV, etc.

Production Technology

Hot Rolling, Cold Rolling

Edge Processing

Edging, Trimming



Chemical Composition

C

Si

Mn

Cr

Ni

S

P

Mo

≤ 0.03

≤1.0

≤ 2.0

16.0~18.0

10.0~14.0

≤ 0.03

≤ 0.045

2.0~3.0



Mechanical Properties

Tensile Strength Kb (MPa)

Yield Strength σ0.2 (MPa)

Elongation D5 (%)

Hardness

≥480

≥177

≥ 40

≤ 187HB;≤ 90HRB;≤ 200HV



Physical Performance

Density(g/cm³)

Modulus of Elasticity(Gpa)

Coefficient of Thermal Expansion(10-6/°C)

Coefficient of Thermal Conductivity(W/m*K)

Resistivity(ΜΩ. cm)

7.99

193

16.0

16.2

74



Surface Selection



316L Stainless Steel Plate

Products center

Product Application

  • 1775551249900060937244790784
  • 1724983128687962864209162240
  • 1724983125687962850678337536
  • 1724983121687962836648390656
  • 1700360854_huge
  • a79728cbbd8040cb9dcee1b7a5e8e557
Products center

Packaging and shipping

  • 1
  • 2
  • 3
  • 4
  • 5
  • 9
Products center

Factory Display

  • a635e6aa8af749b3b20947091f812fdd
  • 011177a38e499b8b50e0993f29e85558
  • 60a465fb6d089d1e3a0c90958431d3c3
  • 未标题-2
  • 摄图网_600975422_钢铁仓库(非企业商用)-(1)
  • vecteezy_modern-industrial-steel-manufacturing-facility-with-advanced_49740735
  • 0b42940c953e9e845fc286c7d6151ed6
  • 25a2288e2c3f5a265b436ee9de2c6480
  • bf4177c383f74c00f80e0bca1aae52a7
  • 工厂车间 (4)
  • Stainless-Steel-Pipe-Manufacturers
  • 4ba06389467ca90624596b987abe434be8635cba188343-TdLEpR 拷贝
  • 645f88ceb28016b71deb44d0eca6ae91346ff4f633046-YV9trp
  • 76e854f676be41a74b86935d2042824d
Products center

FAQ

Q1: What types of steel products does your company primarily manufacture and supply?
A: We are a direct manufacturer specializing in carbon steel, hot-dip galvanized steel, PPGI (pre-painted galvanized iron), and stainless steel (grades 201, 304, and 316) in the form of sheets, coils, pipes, and various structural profiles, along with complementary steel structural components. Our products serve a wide range of industries, including infrastructure, photovoltaics, machinery manufacturing, chemicals, and new energy.



Q2: Do you support customization regarding material grades, thicknesses, and dimensions?
A: Customization is available across our entire product range. For carbon steel, galvanized steel, and stainless steel, we can adjust thickness, width, and cut-to-length dimensions according to GB, ASTM, or EN standards. Various profiles can be cut and bent based on customer drawings, and special steel grades can be produced through customized scheduling.



Q3: What is the difference between galvanized steel and color-coated (PPGI) steel, and how should I choose for my project?
A: Hot-dip galvanized steel features a pure zinc anti-rust layer; it is cost-effective and impact-resistant, making it ideal for mounting brackets, guardrails, and load-bearing factory structures (and it can be painted over). PPGI color-coated steel uses a galvanized base, offering both rust protection and aesthetic appeal with a wide range of colors; it is commonly used for factory roofing, wall cladding, and energy storage equipment casings. We recommend thicker galvanized coatings for projects in rainy coastal areas, color-coated sheets for outdoor projects requiring visual appeal, and weather-resistant fluorocarbon (PVDF) coatings for high-temperature desert environments.



Q4: Does the factory keep stock on hand, and what is the minimum order quantity (MOQ)?
A: We operate our own standardized, zoned warehouse with a capacity of over 10,000 tons, maintaining ample stock of carbon steel, galvanized steel, and stainless steel. The MOQ for standard specifications is 1 ton, though we also accept sample orders as small as a few dozen kilograms. There is no upper limit for large-scale projects, and we support mixed-load shipments combining different steel products in a single container.



Q5: What are the lead times for stock items versus customized products?
A: Standard stock items take 3–7 days for processing, packaging, and container loading. Simple cutting and bending orders take 7–10 days. Orders requiring mold creation or special steel customization take 15–30 days; exact delivery dates are confirmed based on the customer's specific order specifications.
