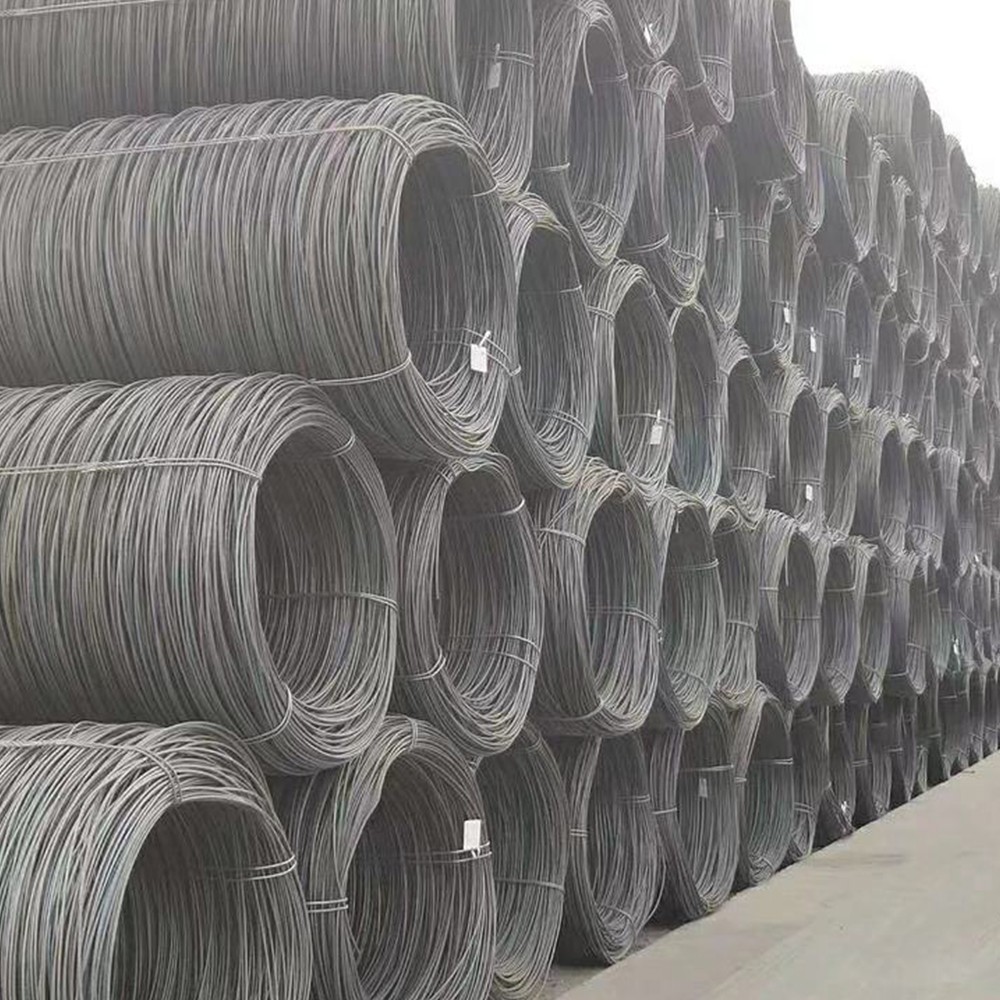

ASTM A510 Steel Wire Rod
ASTM A510 A510M wire is one of the most widely used steel varieties. After rolling, it can be directly used for reinforcing and welding structural components of reinforced concrete, or it can be further processed for use.
WhatsApp:+86 18906192815
Email:andrew@huiyingsteel.com
Contact Us
Products center

Product Description

ASTM A510 Steel Wire Rod Description

ASTM A510 Steel Wire Chemical Composition
Grade % C % Si % Mn % P Max % S Max % Cr Max % Mo Max % Ni Max % Cu Max
AISI 1045 0.44-0.48 0.10-0.30 0.50-0.70 0.020 0.025 0.10 0.03 0.10 0.15
AISI 1049 0.46-0.50 0.10-0.30 0.50-0.70 0.020 0.025 0.10 0.03 0.10 0.15
AISI 1050 0.48-0.42 0.10-0.30 0.50-0.70 0.020 0.025 0.10 0.03 0.10 0.15
AISI 1053 0.50-0.54 0.10-0.30 0.50-0.70 0.020 0.025 0.10 0.03 0.10 0.15
AISI 1055 0.54-0.58 0.10-0.30 0.50-0.70 0.020 0.025 0.10 0.03 0.10 0.15
AISI 1059 0.56-0.60 0.10-0.30 0.50-0.70 0.020 0.025 0.10 0.03 0.10 0.15
AISI 1060 0.58-0.62 0.10-0.30 0.50-0.70 0.020 0.025 0.10 0.03 0.10 0.15
AISI 1064 0.60-0.64 0.10-0.30 0.50-0.70 0.020 0.025 0.10 0.03 0.10 0.15
AISI 1065 0.64-0.67 0.10-0.30 0.50-0.70 0.020 0.025 0.10 0.03 0.10 0.15
AISI 1069 0.66-0.70 0.10-0.30 0.50-0.70 0.020 0.025 0.10 0.03 0.10 0.15
AISI 1070 0.68-0.72 0.10-0.30 0.50-0.70 0.020 0.025 0.10 0.03 0.10 0.15
AISI 1080 0.78-0.82 0.10-0.30 0.50-0.70 0.020 0.025 0.10 0.03 0.10 0.15



Scope of Application

ASTM A510 after being drawn into various specifications of steel wire, twisted into steel wire rope, woven into steel wire mesh, wound into shape, and heat-treated into springs; Rivets are made by hot and cold forging, and bolts, screws, etc. are made by cold forging and rolling; Processed into mechanical parts or tools through cutting and heat treatment.

Products center

Product Application

  • 1775551249900060937244790784
  • 1724983128687962864209162240
  • 1724983125687962850678337536
  • 1724983121687962836648390656
  • 1700360854_huge
  • a79728cbbd8040cb9dcee1b7a5e8e557
Products center

Packaging and shipping

  • 1
  • 2
  • 3
  • 4
  • 5
  • 9
Products center

Factory Display

  • a635e6aa8af749b3b20947091f812fdd
  • 011177a38e499b8b50e0993f29e85558
  • 60a465fb6d089d1e3a0c90958431d3c3
  • 未标题-2
  • 摄图网_600975422_钢铁仓库(非企业商用)-(1)
  • vecteezy_modern-industrial-steel-manufacturing-facility-with-advanced_49740735
  • 0b42940c953e9e845fc286c7d6151ed6
  • 25a2288e2c3f5a265b436ee9de2c6480
  • bf4177c383f74c00f80e0bca1aae52a7
  • 工厂车间 (4)
  • Stainless-Steel-Pipe-Manufacturers
  • 4ba06389467ca90624596b987abe434be8635cba188343-TdLEpR 拷贝
  • 645f88ceb28016b71deb44d0eca6ae91346ff4f633046-YV9trp
  • 76e854f676be41a74b86935d2042824d
Products center

FAQ

Q1: What types of steel products does your company primarily manufacture and supply?
A: We are a direct manufacturer specializing in carbon steel, hot-dip galvanized steel, PPGI (pre-painted galvanized iron), and stainless steel (grades 201, 304, and 316) in the form of sheets, coils, pipes, and various structural profiles, along with complementary steel structural components. Our products serve a wide range of industries, including infrastructure, photovoltaics, machinery manufacturing, chemicals, and new energy.



Q2: Do you support customization regarding material grades, thicknesses, and dimensions?
A: Customization is available across our entire product range. For carbon steel, galvanized steel, and stainless steel, we can adjust thickness, width, and cut-to-length dimensions according to GB, ASTM, or EN standards. Various profiles can be cut and bent based on customer drawings, and special steel grades can be produced through customized scheduling.



Q3: What is the difference between galvanized steel and color-coated (PPGI) steel, and how should I choose for my project?
A: Hot-dip galvanized steel features a pure zinc anti-rust layer; it is cost-effective and impact-resistant, making it ideal for mounting brackets, guardrails, and load-bearing factory structures (and it can be painted over). PPGI color-coated steel uses a galvanized base, offering both rust protection and aesthetic appeal with a wide range of colors; it is commonly used for factory roofing, wall cladding, and energy storage equipment casings. We recommend thicker galvanized coatings for projects in rainy coastal areas, color-coated sheets for outdoor projects requiring visual appeal, and weather-resistant fluorocarbon (PVDF) coatings for high-temperature desert environments.



Q4: Does the factory keep stock on hand, and what is the minimum order quantity (MOQ)?
A: We operate our own standardized, zoned warehouse with a capacity of over 10,000 tons, maintaining ample stock of carbon steel, galvanized steel, and stainless steel. The MOQ for standard specifications is 1 ton, though we also accept sample orders as small as a few dozen kilograms. There is no upper limit for large-scale projects, and we support mixed-load shipments combining different steel products in a single container.



Q5: What are the lead times for stock items versus customized products?
A: Standard stock items take 3–7 days for processing, packaging, and container loading. Simple cutting and bending orders take 7–10 days. Orders requiring mold creation or special steel customization take 15–30 days; exact delivery dates are confirmed based on the customer's specific order specifications.
